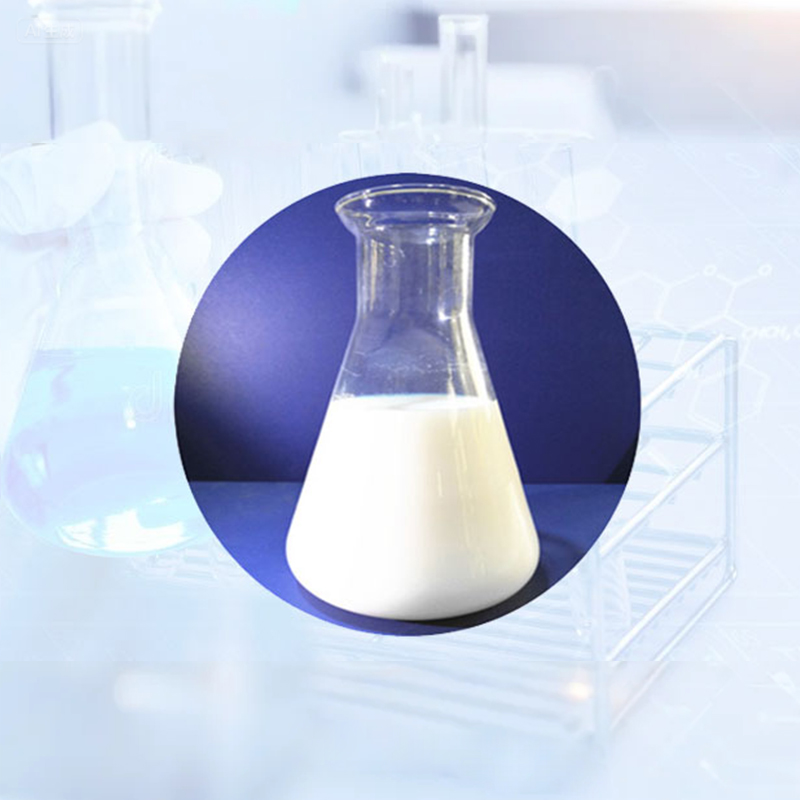

YDL large particle size series silica sol

INTRODUCTION

INSTRUCTION MANUAL

VIDEO DETAILS

Product Parameters

sequence	Product Series	Product Model	Technical parameters						stable phase (Month)
sequence	Product Series	Product Model	Silicon dioxide mass fraction （SiO2%）	specific gravity (25℃，g/cm3)	Mass fraction of sodium oxide （Na2O%）	PH value （25℃）	viscosity (25℃，mpa.s)	average particle size (nm)	stable phase (Month)
1	Large particle Series	YDL-3040	39～41	1.29～1.31	≤0.3	9.0～10.5	≤15	20～40 PDI＜0.1	12 months
2		YDL-5040	39～41	1.29～1.31	≤0.3	9.0～10.5	≤10	40～60 PDI＜0.1	12 months
3		YDL-8040	39～41	1.29～1.31	≤0.3	9.0～10.5	≤10	70～90 PDI＜0.1	12 months
4		YDL-12040	39～41	1.29～1.31	≤0.3	9.0～10.5	≤10	110～130 PDI＜0.1	12 months
5		YDL-12050	49～51	1.38～1.40	≤0.3	9.0～10.5	≤10	110～130 PDI＜0.1	12 months
Note: Technical parameters can be adjusted and produced according to customer needs.

Product Features

Large particle size silica sol refers to a silica sol system with an average particle size of 30-120nm.

Product application areas

Mainly used in ceramic, sapphire polishing, gallium arsenide, silicon wafer polishing, cement curing agent, refractory materials, etc.
